Here's a rare opportunity to own a classic
British-made Geiger counter. It has been a popular choice in education,
industry and research for several decades and is now available for personal
users. The two models featured are the Mini-Instruments type 5.10 and 5.40,
designed and manufactured in the 1980s and 90s. Although they have been around
for a few years they have proved to be extremely reliable and continue to work
as well as they did when they were made. There is no reason to suppose why they
shouldn't continue to do so for many years to come. They have been extensively
refurbished and updated by anythingradioactive, to the point where they now
compare very favourably, and even exceed the performance, durability,
refinement and ease of use of many modern instruments.
The key feature, and still used on modern
Mini-Instruments (now Thermo Scientific) products, is a large and very easy to
read moving coil meter, with a clever logarithmic scale. In a nutshell this
means there is no need for a range switch and it can accurately display (in
counts per second or cps) both high and low level readings (from normal
background, to ‘get the hell out of there’…). Other highlights include:
- Internal speaker (with mute switch)
- LED ‘event’ flasher
- Audio output socket
- DC supply socket
- Detachable probe
- Adjustable HV probe supply
- Battery Check function
- Sturdy, compact metal case with carry handle
and probe cradle
- Convenient ‘curly’ probe cable lead
- Portable operation with long battery life
- Calibrated prior to despatch
- Free Mains Adaptor -- Limited Supply, First Come First Served!
Technically, visually and as far as
performance, reliability and ease of use are concerned the two models are
almost identical. They were originally configured to use hard-wired detection
probes but their readily adjustable high voltage (HV) circuitry means that they
can be used with a very wide range of detection devices. This includes standard
Geiger Müller (GM) tubes, 'pancake' type GM probes and even advanced
Scintillation probes. The result is a highly versatile instrument, capable of
functioning in a wide variety of specialist and non-specialist applications and
environments (For advanced users the operating manual includes full details of
how to carry out HV adjustments).
The refurbishment begins with a complete
disassembly of the cases. They have been stripped back to bare metal and
re-sprayed using top quality paint to bring them back to near showroom
condition*. Incidentally, we can also apply custom colours and finishes -
details on request.
Most of the Type 5.40 units that we have were
originally supplied to the UK's Atomic Weapons Establishment (AWE), which carried out a number of
modifications. They included adapting the power supply for bench operation (FREE adaptor included),
adding an external HV output control (approx 350 - 1400 volts), and fitting a
probe connector. Following decommissioning from the AWE we have either removed
or adapted the mods. The 5.40 now operates as a fully portable instrument,
powered an internal battery pack(s) requiring 8 standard 1.5 volt AA cells.
It's still effective as a bench instrument as we’ve fitted a socket for a
standard mains adaptor and we’ve replaced the obsolete PTE 100 probe connector
with a modern TNC connector. We’ve also re-purposed an LED indicator, (fitted
by the AWE for the power supply modification), as an event 'flasher', and given
it them an output socket (3.5mm jack), so they can be used with headphones,
connected to an amplifier, or a PC, for data logging or analysis.
The type 5.10 units have also been extensively
refurbished to the same standard, with TNC connectors, LED flashers, external
power supply and audio sockets. The main differences between the two models are
that the 5.10 retains the original internal HV adjustment mounted on the PC
board), and the voltage range (250 - 700 volts) which covers most common
types of GM detector. This can be extended on request to cover a similar range
to the 5.40.
After reassembly each unit is extensively
tested (not a single failure so far!), adjusted and pulse-calibrated – the latter
is re-checked immediately prior to shipping.
Currently we are offering these units with a
choice of five types of probe (other types are available, or you can choose to
your own probe, just ask...). Instruments with supplied probes are set to the
correct output voltage. Please note that some probes are in very short supply,
so order early. The standard offerings, which you can select from the check boxes when ordering are:
AR/ZP1A: factory-original 20mm dia. mica window
GM tube in a new housing, sensitive to Beta, Gamma and high-energy Alpha
B/SBT-11: miniature mica-window flat pancake
type Geiger Müller detector, sensitive to Beta, Gamma and high energy

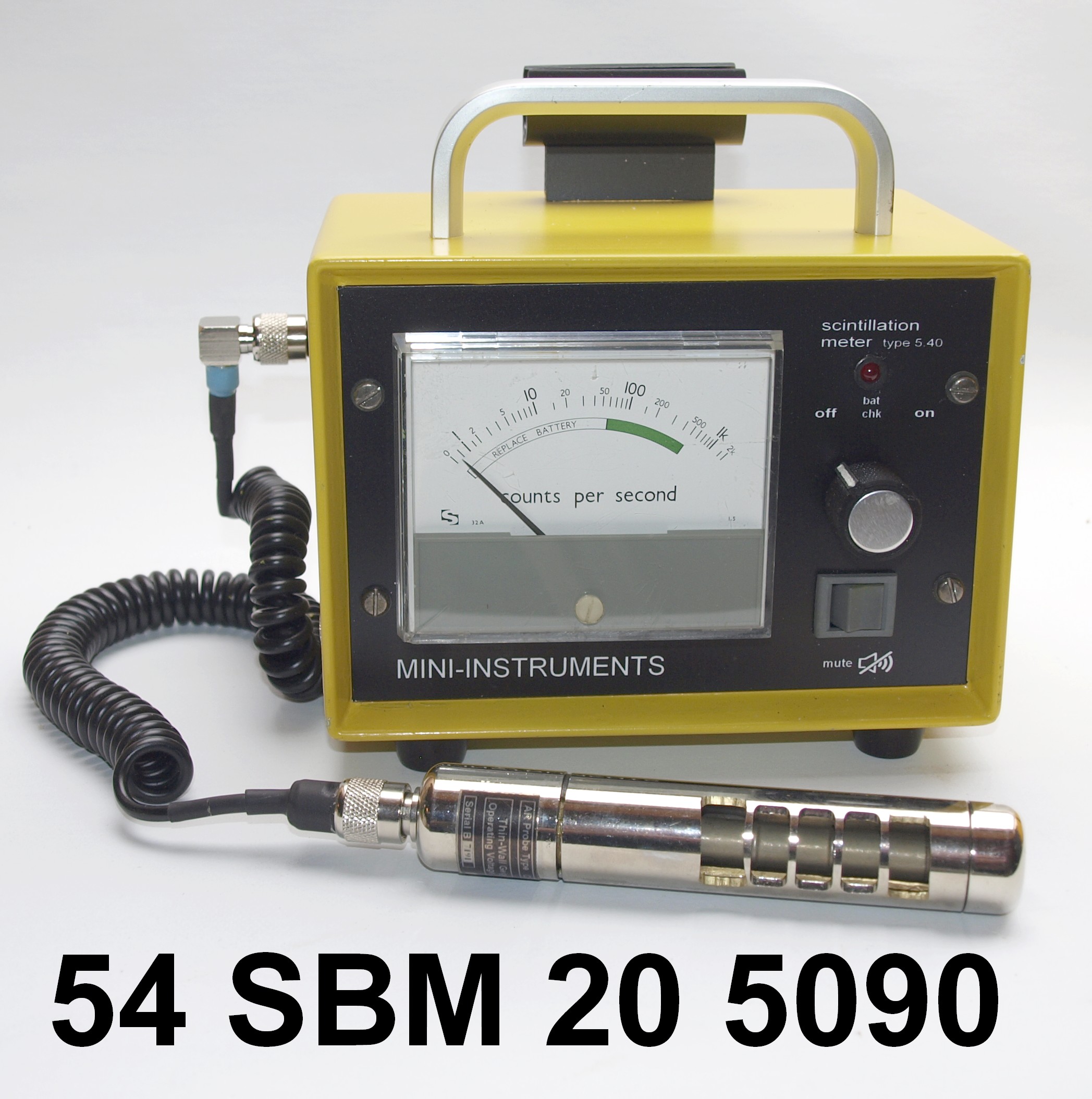

C/SBM-20: thin-walled Geiger Müller tube,
sensitive to low levels of Beta and Gamma radiation. Housing adapted from probe
supplied with US made Civil Defence (CDV) instruments. Features rotating sleeve
for discriminating between Beta and Gamma radiation.
P/SBM-20: thin-walled Geiger Müller tube, Beta
& Gamma sensitivity, lightweight and rugged.
BASIC SPECIFICATIONMeter Display: Logarithmic scale, 0-2000 counts per second (cps)
Audio: Internal speaker, switchable mute
Visual Display: LED 'event' flasher
Power Requirements. 8 x 1.5-volt AA cells or external 12 - 18 VDC
Current consumption: 1-3 mA (depending on activity)
Battery Life: Typical 300 hours (approx. 4-6 hours use per day)
Connections: Probe: TNC male; Audio: 3.5mm mono jack socket: External power: 2.1mm DC socket, centre pin positive
Dimensions: 165 x 115 x 155mm
* Please note that these units have been in service for several years so there may be some slight marking (scuffs, small scratches, etc.) on the meter face. There may be other cosmetic blemishes, however these are generally minor in nature.
